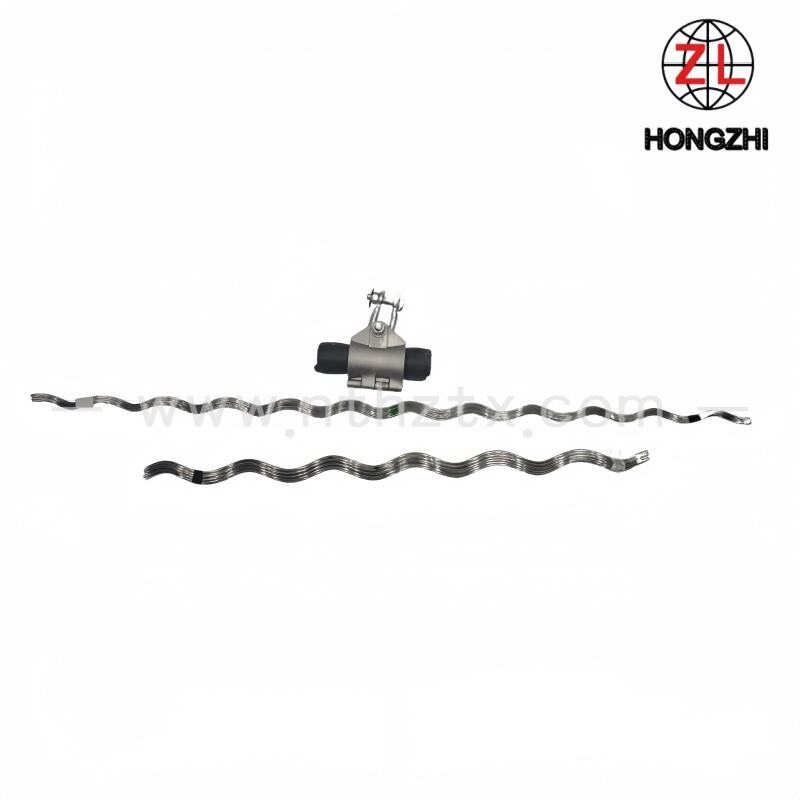

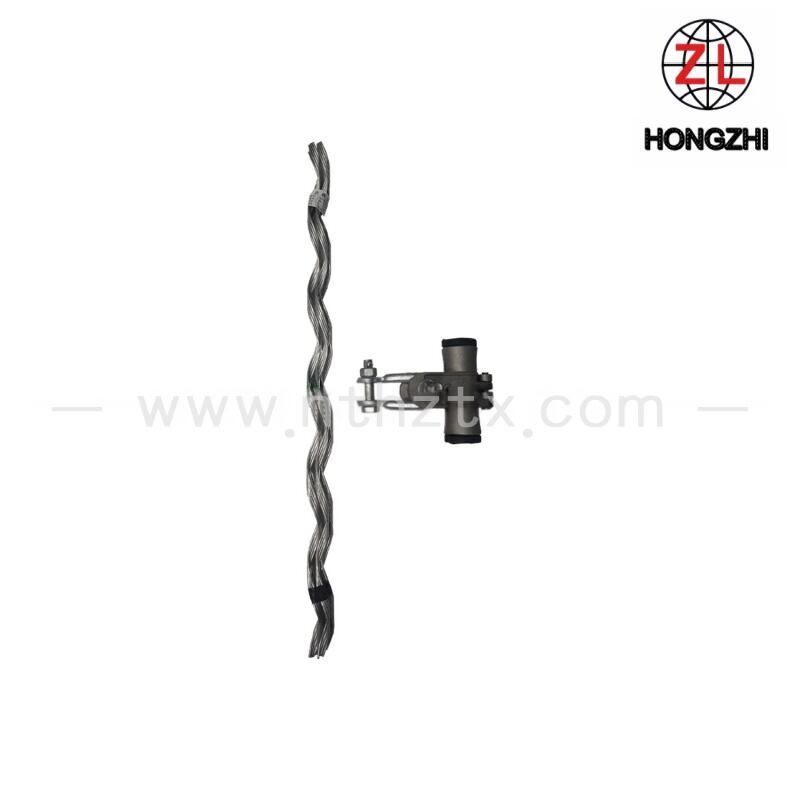

Helical Suspension Clamp For ADSS Cable.
ADSS preformed suspension clamp is mainly used to support the suspend ADSS cable. It is suitable for the ADSS cable, conductor and grounding wire on transmission line. It is recommended used on the line with turning angle less than 30 degree.This helical suspension clamp is the connecting fitting that hangs ADSS cable onto the poles/tower in the transfer line, the clamp can decrease the static stress of cable at hanging point, improve anti vibration capacity and restrain dynamical stress caused from wind vibration. It also can ensure that the cable bend doesn't exceed allowable value and cable doesn't generate bend stress. By installing this clamp, the various harmful stress concentrations can be avoided, so the additional damage wastage shall not occur in the optical fiber within the cable.
For Example

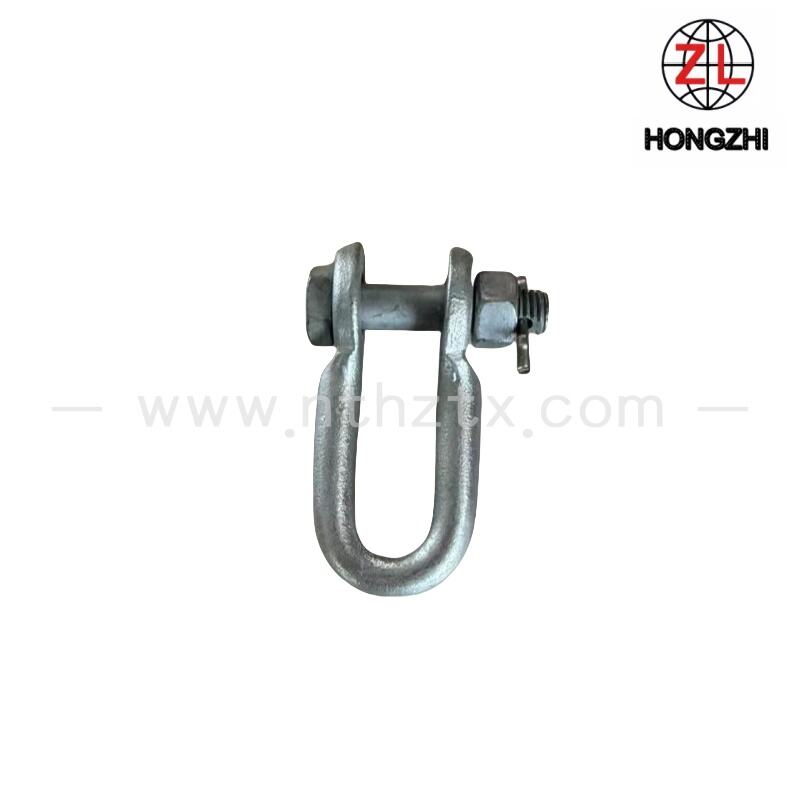

It is specifically designed for ADSS cable with span not more than100-150m and mid support of angle less than 25°. Each support is matched with one set.The broken strength >15KN, The vertical holding strength >1.5KN.An extra U-4 shackle will be extra offered if you purchase a full set size single.
|
Type
|
Application To The Cable Outer Diameter(mm) |
Single Rods |
Code
|
|||
Min |
Max |
Root |
Wire Diameter(mm) |
Length(mm) |
||
AXY 1100 150 |
10.1 |
11 |
14 |
2.3 |
800 |
Yellow |
AXY 1200 150 |
11.1 |
12 |
15 |
2.3 |
800 |
Green |
AXY 1300 150 |
12.1 |
13 |
15 |
2.3 |
1000 |
Green |
AXY 1400 150 |
13.1 |
14 |
16 |
2.3 |
1000 |
Red |
AXY 1500 150 |
14.1 |
15 |
16 |
2.9 |
1000 |
Black |
